电线平方 Wire square |
电线枪 Wire Rance |

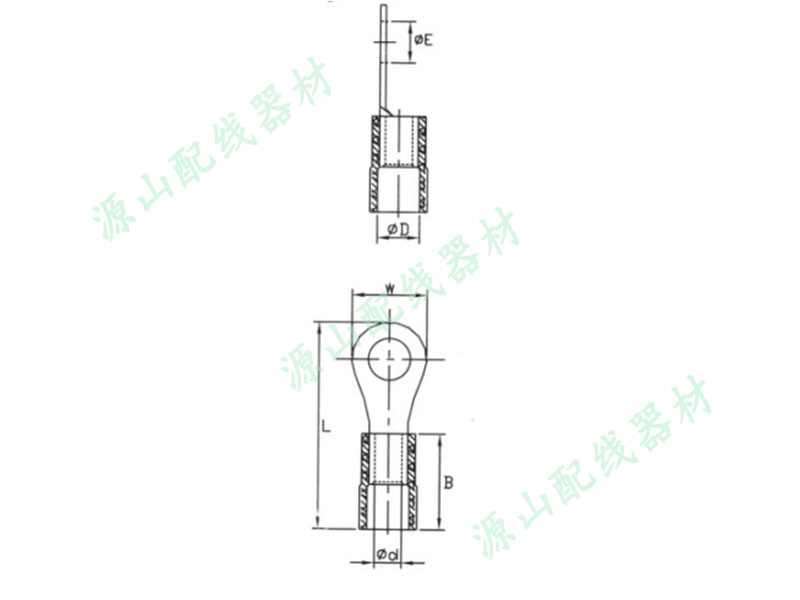

尺寸(Dimensions) |
颜色 Color |
||||||
| AWG/MCM | MM2 | ΦE | ΦD | Φd | W | B | L | ||
| VF1.25-3 | 22-16 | 0.25-1.65 | 3.2 | 4.0 | 1.7 | 5.5 | 10.4 | 17.3 |
红色 Red |
| VF1.25-4 | 22-16 | 0.25-1.65 | 4.3 | 4.0 | 1.7 | 6.6 | 10.4 | 20.3 | |
| VF1.25-5 | 22-16 | 0.25-1.65 | 5.3 | 4.0 | 1.7 | 8.0 | 10.4 | 21.8 | |
| VF1.25-6 | 22-16 | 0.25-1.65 | 6.4 | 4.0 | 1.7 | 11.6 | 10.4 | 27.5 | |
| VF1.25-8 | 22-16 | 0.25-1.65 | 8.4 | 4.0 | 1.7 | 11.6 | 10.4 | 27.5 | |
| VF1.25-10 | 22-16 | 0.25-1.65 | 10.5 | 4.0 | 1.7 | 13.6 | 10.4 | 31.8 | |
| VF2-3 | 16-14 | 1.04-2.63 | 3.2 | 4.6 | 2.3 | 8.5 | 10.4 | 22.3 |
蓝色 Blue |
| VF2-4 | 16-14 | 1.04-2.63 | 4.3 | 4.6 | 2.3 | 6.6 | 10.4 | 19.8 | |
| VF2-5 | 16-14 | 1.04-2.63 | 5.3 | 4.6 | 2.3 | 9.5 | 10.4 | 22.3 | |
| VF2-6 | 16-14 | 1.04-2.63 | 6.4 | 4.6 | 2.3 | 12.0 | 10.4 | 27.3 | |
| VF2-8 | 16-14 | 1.04-2.63 | 8.4 | 4.6 | 2.3 | 12.0 | 10.4 | 27.3 | |
| VF2-10 | 16-14 | 1.04-2.63 | 10.5 | 4.6 | 2.3 | 13.6 | 10.4 | 30.8 | |
| VF3.5-4 | 12-10 | 2.63-4.60 | 4.3 | 5.6 | 3.2 | 9.5 | 13.3 | 26.3 |
黄色 Yellow |
| VF3.5-5 | 12-10 | 2.63-4.60 | 5.3 | 5.6 | 3.2 | 9.5 | 13.3 | 26.3 | |
| VF3.5-6 | 12-10 | 2.63-4.60 | 6.4 | 5.6 | 3.2 | 12.0 | 13.3 | 27.7 | |
| VF3.5-8 | 12-10 | 2.63-4.60 | 8.4 | 5.6 | 3.2 | 12.0 | 13.3 | 27.7 | |
| VF5.5-3 | 12-10 | 4.60-6.64 | 3.7 | 6.6 | 3.5 | 9.5 | 13.3 | 26.5 |
黄色 Yellow |
| VF5.5-4 | 12-10 | 4.60-6.64 | 4.3 | 6.6 | 3.5 | 9.5 | 13.3 | 26.5 | |
| VF5.5-5 | 12-10 | 4.60-6.64 | 5.3 | 6.6 | 3.5 | 9.5 | 13.3 | 26.5 | |
| VF5.5-6 | 12-10 | 4.60-6.64 | 6.4 | 6.6 | 3.5 | 12.0 | 13.3 | 32.5 | |
| VF5.5-8 | 12-10 | 4.60-6.64 | 8.4 | 6.6 | 3.5 | 15.0 | 13.3 | 34.5 | |
| VF5.5-10 | 12-10 | 4.60-6.64 | 10.5 | 6.6 | 3.5 | 15.0 | 13.3 | 34.5 | |
| VF8-3 | 8 | 6.64-10.52 | 3.7 | 8.3 | 4.5 | 10.0 | 17.5 | 30.0 |
红色 Red |
| VF8-4 | 8 | 6.64-10.52 | 4.3 | 8.3 | 4.5 | 10.0 | 17.5 | 30.0 | |
| VF8-5 | 8 | 6.64-10.52 | 5.3 | 8.3 | 4.5 | 10.0 | 17.5 | 30.0 | |
| VF8-6 | 8 | 6.64-10.52 | 6.4 | 8.3 | 4.5 | 11.0 | 17.5 | 31.5 | |
| VF8-8 | 8 | 6.64-10.52 | 8.4 | 8.3 | 4.5 | 14.0 | 17.5 | 36.0 | |
| VF8-10 | 8 | 6.64-10.52 | 10.5 | 8.3 | 4.5 | 48.0 | 17.5 | 39.0 | |
| VF14-5 | 6 | 10.52-16.78 | 5.3 | 9.7 | 5.9 | 11.0 | 23.0 | 37.5 |
红色 Red |
| VF14-6 | 6 | 10.52-16.78 | 6.4 | 9.7 | 5.9 | 11.0 | 23.0 | 37.5 | |
| VF14-8 | 6 | 10.52-16.78 | 8.4 | 9.7 | 5.9 | 14.0 | 23.0 | 43.0 | |
| VF14-10 | 6 | 10.52-16.78 | 10.5 | 9.7 | 5.9 | 18.0 | 23.0 | 45.0 | |
| VF14-12 | 6 | 10.52-16.78 | 13.0 | 9.7 | 5.9 | 18.0 | 23.0 | 45.0 | |
